Current position --Production technology

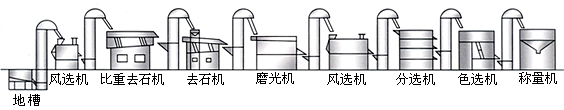

technology flow image of production line of red bean selected raw material

地槽	风选机	比重去石机	去石机	磨光机	风选机	分选机	色选机	称量机
geosyncline	winnower	specific gravity stone removing machine	stone removing machine	grinding machine	winnower	selecting machine	color choosing machine	weighing machine

　　In order to meet the requirements of consumers at home and abroad, the production line has absorbed advanced equipment technology, adopted such crafts as specific gravity classification, stone removing, screening, choice using wind, grinding, polishing and luster and color choosing and so on to make bean raw material classified according to different need.

main technical parameter：
production ability	total power	workshop area
800kg/h	30kw	120m2

technology flow image of deepfreeze red bean boiling production line

清洗摇流机	煮豆笼屉	行车	煮豆锅	落料斗	欲冷传送带
washing shake flow machine	bean boiling bamboo steamer	travelling crane	bean boiling pot	material dropping funnel	cooling transmission belt
上料传送带	速冻隧道	金属探测器	装带	打包机	入冷库
material loading transmission belt	freezing tunnel	metal detector	loading belt	baling machine	enter into refrigeration

　　By adopting advanced equipments, the production line makes selected red bean into frozen products with plump grain and no broken skin with the technology of washing, digging, boiling, dry, deepfreeze and metal detecting and so like.

main technical parameter：
production ability	total power	exhausted water	exhausted steam	workshop area
10t/8h	50KW	12t/h	2000kg/h	400m2

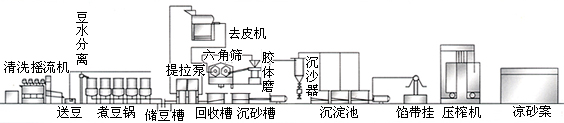

technology flow image of red bean stuffing production line

清洗摇流机	送豆	豆水分离	煮豆锅	储豆槽	提拉泵	六角筛	去皮机
washing shake flow machine	send bean	separation of bean and water	bean boiling pot	bean storing trough	lifting pump	hexangular screen	skin removing machine
回收槽	沉砂槽	胶体磨	沉沙器	沉淀池	馅带挂	压榨机	凉砂案子
reclaiming trough	sinking trough	glue grind	sinking apparatus	sedimentation pool	stuffing belt hang	pressing machine	air platform

　　By adopting the advanced particular technological technique, after such crafts as red bean's washing, screening, stuffing extracting, packing, sterilization and cooling and so on, the production line makes out top quality stuffing.

main technical parameter：
production ability	total power	exhausted water	exhausted steam	workshop area
4t/8h	44KW	15t/h	1500kg/h	500m2

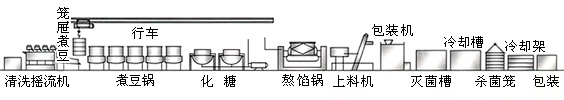

加糖红小豆馅生产线工艺流程图

清洗摇流机	笼屉煮豆	行车	煮豆锅	化糖	熬馅锅	上料机
washing shake flow machine	bamboo steamer bean boiling	travelling crane	bean boiling pot	sugar melting	stuffing boiling pot	material loading machine
包装机	灭菌槽	冷却槽	杀菌笼	冷却架	包装
packing machine	bacteria killing trough	cooling trough	bacteria killing steamer	cooling rack	packing

　　By adopting advanced equipment technology, after such steps as washing, stuffing boiling, package, sterilization and cooling and so on, the production line can make out products which is in accordance with international standard quality requirements can be preserved under constant temperature above six mouths.

main technical parameter：
production ability	total power	exhausted water	exhausted steam	workshop area
4t/8h	30KW	10t/h	1500kg/h	400m2
